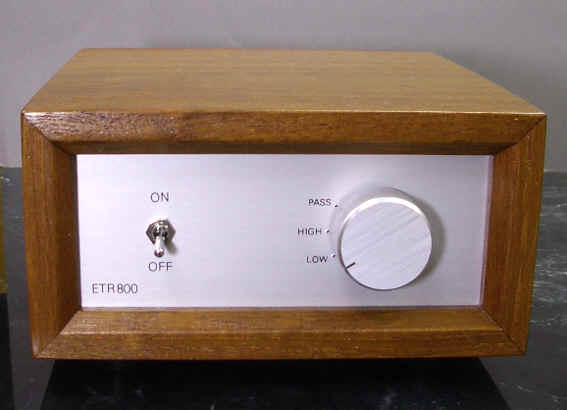

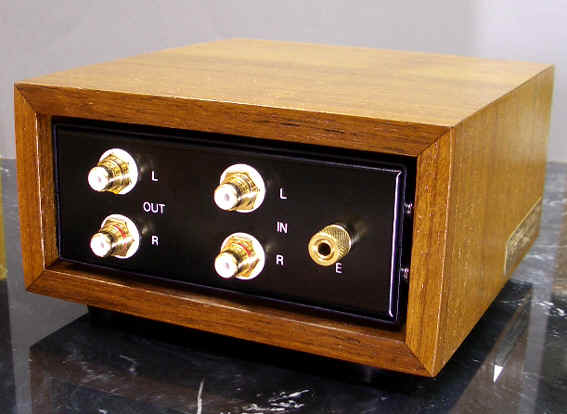

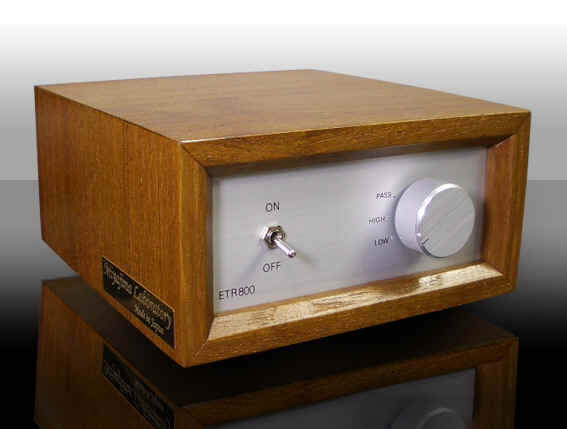

ETR-800 D  MC   step-up transformer.
The product name is ETR-800.and it is improved from our domestic model ETR-80

ETR-800 is installed in a beautiful TEAK case.
The calking material is "paraffin".
1) I have regarded clear sound quality and the strength of the low level as
important not to spoil a good point of Shilabe.
2) Highest grade core material, permalloy 80 for the core of the transformer is used.
3) There is a switch changing Low,High,Pass.
4) There is a switch for demagnetizing.

I think that this stepup transformer ETR-800 D works acts on not only Shilabe STEREO
and Premium MONO but also the cartridge of other companies effectively.

List Price  ETR-800 D  €  1,795.--
Input  Low(2 to 20ohms)
High(20 to 40ohms)
Pass(50k ohms)
Output Impedance  50k ohms
Voltage up ratio  Low(33dB) High(27dB)
Frequency range  10 Hz to 20 kHz
Demagnetization  Demagnetization for both a
cartridge and a transformer
Dimension  W150 H85 D180
Weight   1,3 Kg

Demagnetization

When time passes, a stepup transformer and the cartridge do magnetization. The demagnetizer short-circuits in OUT of the transformer. It does demagnetization of a transformer and a cartridge by a
voice signal of the interchange.

others wooden belt

band1band2

Ebony, stainless steel bolt, acopper nut

List Price "Wooden belt "     €   50.--
The width that is
device possibility		 Length 23mm
breadth 8-12mm
Weight About 3.5g



band3

band5

Usage:
A metal part has to install it not to touch the terminal of the cartridge.
Please tighten it by power having weak finger-tip.
There is a big effect when used for kotetu and spiritu.
It can be used for the cartridge of other companies, but please confirm size.

An effect:
This band reduces the resonance of the cartridge and increases weight.
This band stabilizes the sound quality of the cartridge and becomes the high-grade sound.

Three points of support metal washers

wa01wa02

The materials are brass.

Entering 3

A price with three :  EUR 29.-- *

*  Versand in Deutschland erfolgt portofrei per Einwurfeinschreiben!

Usage:
Please exchange it for the rubber washer of the shell.
As for the general shell, a rubber washer is used for a connection point.
Because this rubber washer is tender, the point of contact makes it vague, slight movement occurs.
Three points of support metal washers lose the vague point of contact and use it to make it the point of contact that does not move.

wa03 => wa04 => wa05 => wa06







wa07 => wa08 => wa09 => wa10

An effect:
It can get a clear sound to get rid of the slight movement of an arm and the shell.
A careful sound and feeling of speed improve by getting rid of the vagueness of the point of contact by three projections of three points of support washers.
