Miyajima's NEW's

Miyajima-Laboratory
-Madake-

-Madake-
We used Japanese bamboo (madake) for a new cartridge.
Mr.Thomas Edison used this special madake to the filament of the electric bulb in old days.
This special madake is produced only from the mountain of Kyoto, Japan.

Mr.Thomas Edison found this highest quality madake from 1,200 kinds of bamboo of the world.

This madake is the firm bamboo which grew in the rich soil of the iron content.
Because I was looking for the firm cantilever which was not metal, it was the accidentally same condition.

I negotiated to obtain special madake in Iwashimizu Hachiman-gu Shrine of the mountain of Kyoto.
Because I respect Mr.edison of the inventor, "Edison" is included in the name of my Japanese audio shop.
Therefore, they handed over some madake to us in an exception.
Madake of ideal materials has special sound quality.

Madake is rare bamboo now. They do not sell bamboo (madake).
Please do not do an inquiry of the madake purchase to Iwashimizu Hachiman-gu.

There is Edison monument in Iwashimizu Hachiman-gu Shrine.
Iwashimizu Hachiman-gu Shrine is one of Japan's three biggest Hachiman-gu Shrine.
The follows are websites of Iwashimizu Hachiman-gu Shrine. (Japanese website)

Iwashimizu Hachiman-gu Shrine HP

Edison monument

http://www.iwashimizu.or.jp/

Maker	Miyajima-Laboratory
Product name	Stereo cartridge -Madake-
Impedance	About 16 ohms (About 0.23mV output)
Frequency range (-3dB)	20 Hz to 32 kHz
Tracking force	2.5 g
Stylus Shape	Shibata (diamond needle)
Compliance (10Hz)	around 9×10-6cm/dyne
Appropriate temperature	20-30 Celsius (most suitable 25 C) 68-86 Fahrenheit (most suitable 77 F)
Weight	about 9.7g
EVK	€ 6.495.--

Test:

-------------------------------------------------------------------------------------------------------------------------------------------

NEW: Takumi and Zero

other Kotetu, Premium, Spirit, Wasa, Kansui, Shilabe

MONO	STEREO

--------------------------------------------------------------------------------------------

"KSW"
MC Stepup Transformer

This stepup transformer "KSW" was produced exclusively for Kansui,Shilabe,Waza.
It is the stepup transformer which is ideal for a stereo cartridge of Miyajima-Lab.
KSW removed the extra functions such as selectors to improve sound quality.

- KSW is installed in a beautiful TEAK case.
- The calking material is "paraffin"
- Highest grade core material, permalloy 80 for the core of the transformer is used.
- The front button is a demagnetization function.

Demagnetizer
When several months pass, a stepup transformer and the cartridge are magnetized.
The demagnetizer short-circuits in OUT of the transformer.
It does demagnetization of a transformer and a cartridge by a voice signal of the interchange.

Product name	Stepup Transformer "KSW"
Input	16ohm
Output Impedance	47k ohm
Voltage up ratio	28.5dB　About 27 times
Frequency range	10 Hz to 20 kHz
Demagnetizer	Demagnetizer for both a 　cartridge and a transformer
Dimension	W150 H85 D180
Weight	1.3kg
EVK	€ 2.795.--

--------------------------------------------------------------------------------------------

ETR-800 MC
step-up transformer.

The product name is ETR-800.and it is improved from our domestic
model ETR-80

TR-800 is installed in a beautiful TEAK case.
The calking material is "paraffin".

--------------------------------------------------------------------------------------------

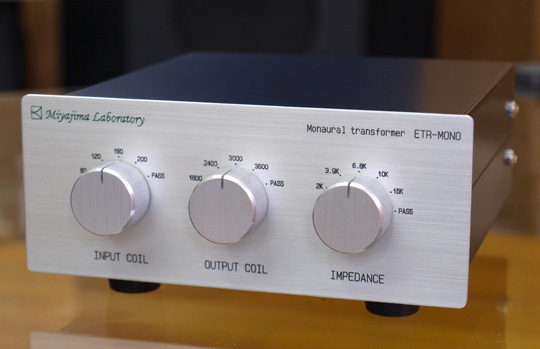

ETR-MONO

This ETR-MONO is a monaural stepup transformer.
0The stereo sound source is changed to a monaural sound source.
If you use ETR-MONO by a monaural system,
please use only one channel.

--------------------------------------------------------------------------------------------

other:

-
